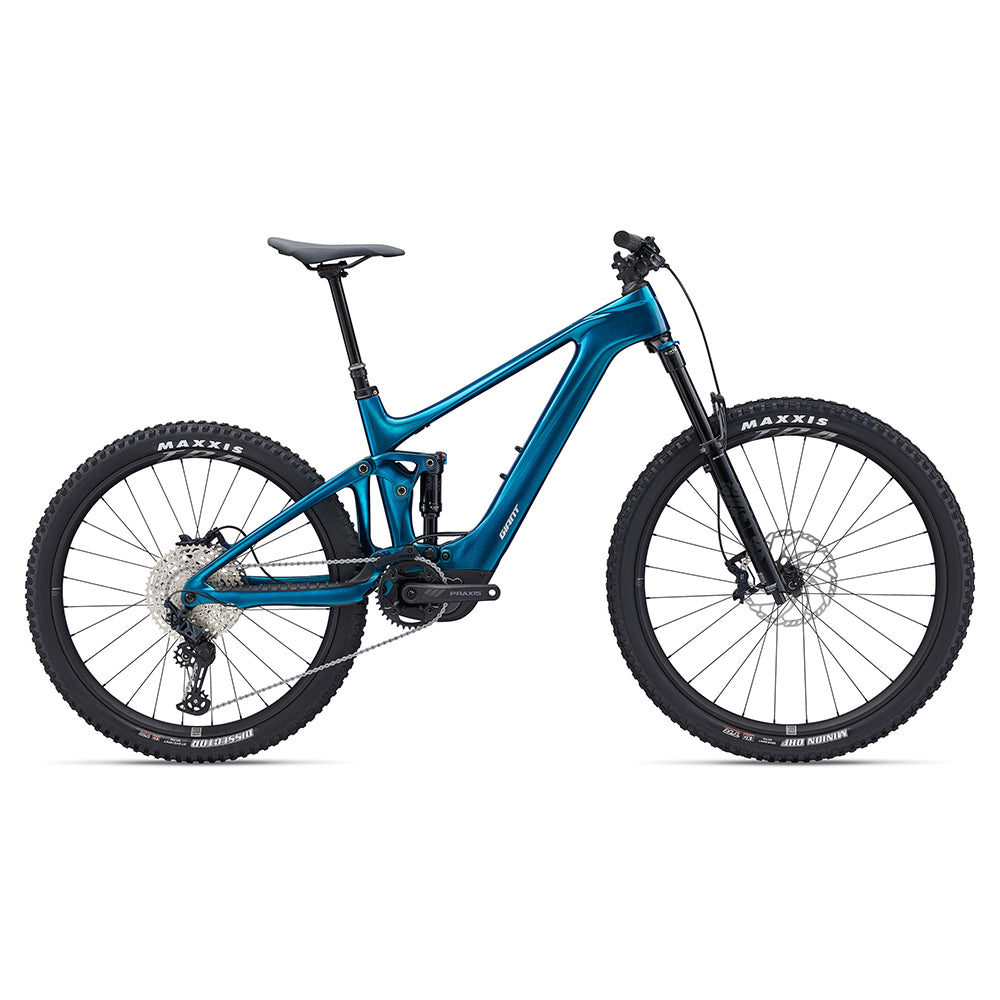

Giant 2024 Trance X Advanced E+ EL 2 25km/h - Sea Sparkle

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

• Motor: Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
• Controller: RideControl Ergo 3, grip integrated
• Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
• Battery: EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
• Charger: EnergyPak 4A smart charger compact
• Sizes: S, M, L, XL
• Colours: Sea Sparkle
• Frame: Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
• Fork: Fox 36 Float Performance Elite, 150mm travel, 44mm offset, GRIP 3-position Micro Adjust damper, Boost 110x15QR, e-bike optimised
• Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
• Handlebar: Giant Contact SL 35 Trail, 35
• Grips: Giant Tactal Pro-E, single lock-on
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
• Seatpost: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
• Saddle: Giant Romero
• Pedals: N/A
• Shifters: Shimano SLX
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: Shimano SLX, 12-speed, Shadow+
• Brakes: Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R]
• Brake Levers: Shimano SLX, I-spec EV
• Cassette: Shimano, CS-M6100, 10-51T, 12-speed
• Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
• Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
• Bottom Bracket: N/A
• Rims: Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection
• Hubs: Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
• Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
• Tires: Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXO [R]
• Extras: Tubeless kit (liquid, valves, levers)
• Lighting: Optional:- Giant Recon series e-bike lights available and direct connectable
