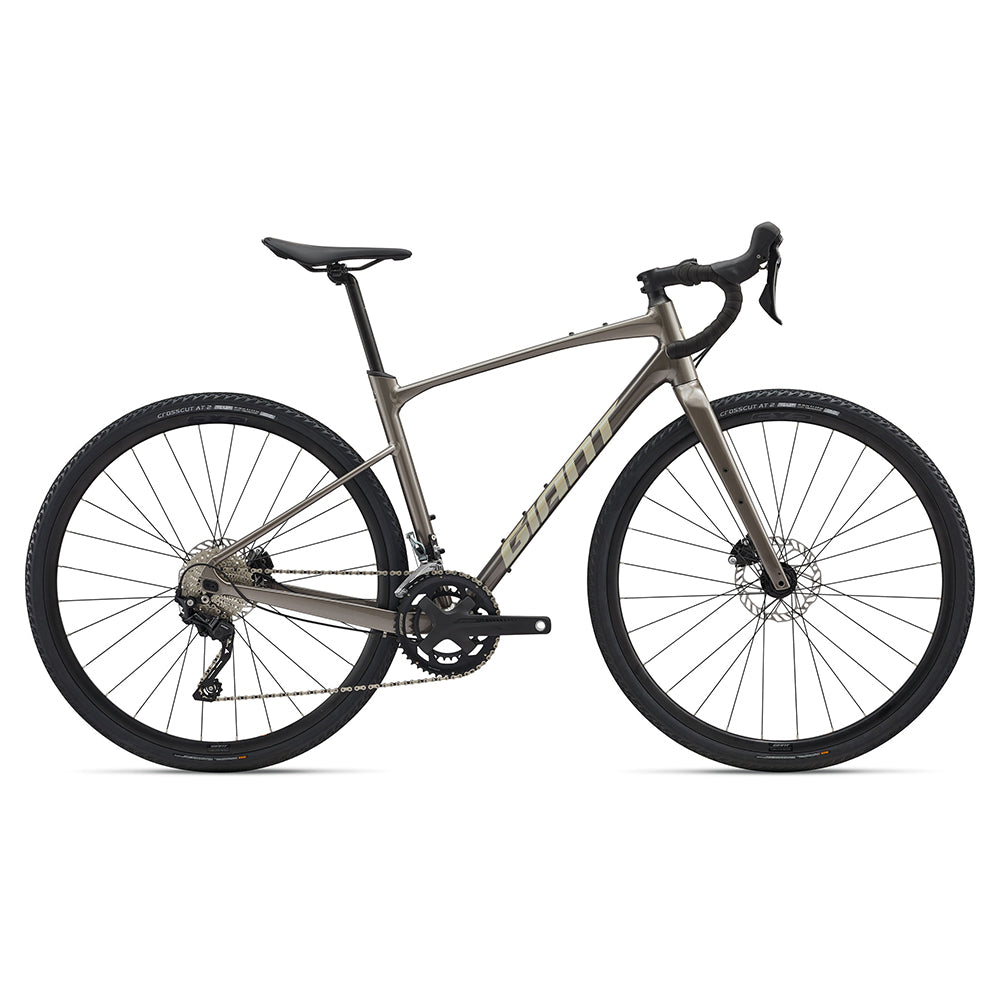

Giant 2025 Revolt 1 - Metal
Giant 2025 Revolt 1 - Metal
Pickup available at De Grandi Cycle & Sport
Usually ready in 4 hours
PayPal - Pay In 4 Interest-Free Instalments. Available at the checkout.
SKU:218242
About This Product...
Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Click and collect only.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Highlights
The versatile Revolt features a lightweight ALUXX aluminium frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tyre clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tyres up to 53mm.

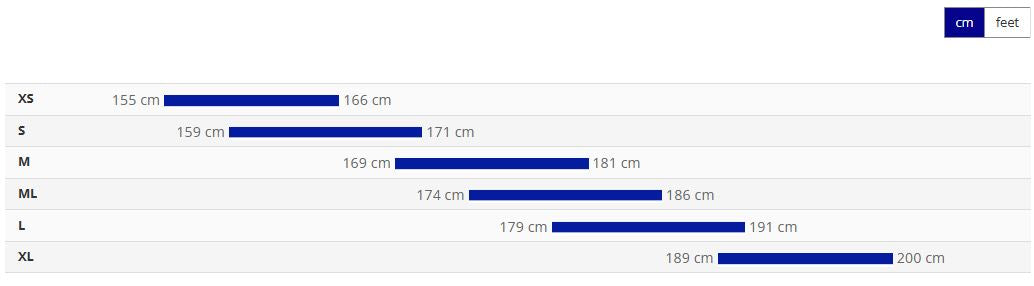

Sizes: XS, S, M, M/L, L, XL
Colours: Metal
Frame & Fork
- Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
- Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Cockpit
-
Handlebar: Giant Contact XR D-Fuse, 31.8mm
- XS/S: 42cm, M/M/L: 44cm, L/XL: 46cm
- Grips: Cork tape with gel
-
Stem: Giant Contact, 8-degree
- XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm
Seating
- Seatpost: Giant D-Fuse, alloy, 14mm offset
- Saddle: Giant Approach
- Pedals: N/A
Drivetrain
- Shifters: Shimano GRX RX-400, 2x10
- Front Derailleur: Shimano Tiagra
- Rear Derailleur: Shimano GRX RX-400
- Cassette: Shimano HG500, 11x34
- Chain: KMC X10
-
Crankset: FSA Omega Adventure, 32/48
- XS/S: 170mm, M/M/L: 172.5mm, L/XL: 175mm
- Bottom Bracket: FSA Mega EXO
Brakes
- Brakes: Shimano GRX RX-400 hydraulic
- Rotors: Giant MPH rotors – Front: 160mm, Rear: 160mm
- Brake Levers: Shimano GRX RX-400 hydraulic
Wheels & Tires
- Rims: Giant S-X2 Disc wheelset, alloy
- Hubs: Giant alloy, 12mm thru-axle
- Spokes: Stainless steel
- Tires: Giant CrossCut AT 2, 700x38c, tubeless
Extras
- Tubeless prepared
- 53mm max tire size (long flip chip position)
- 45mm max tire size (short flip chip position)
