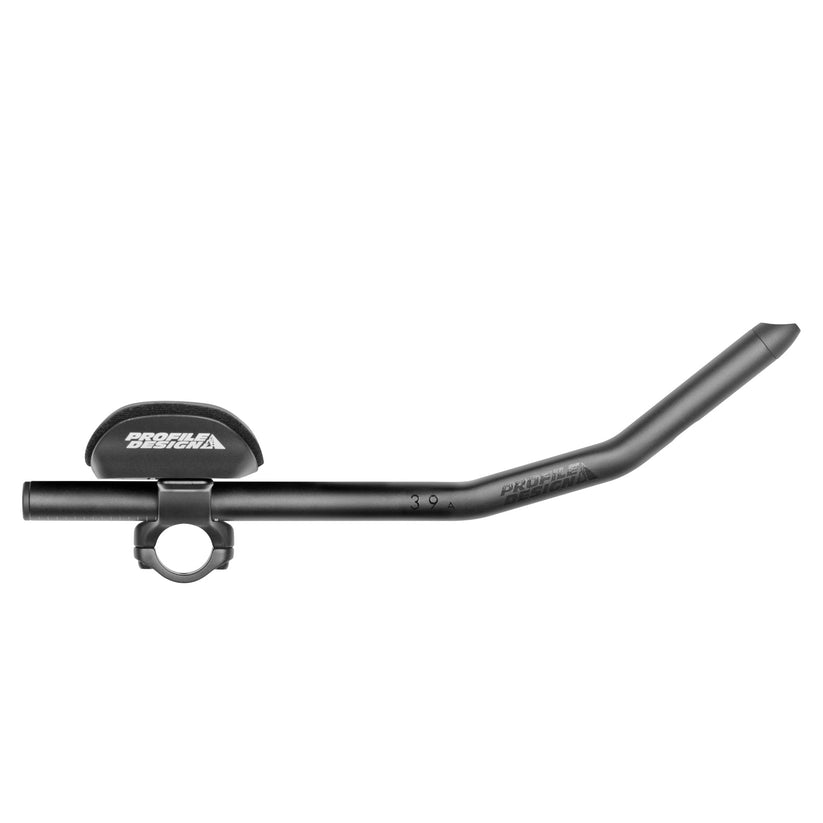

Profile Design Sonic/Ergo/39a Aerobar - Black
Profile Design Sonic/Ergo/39a Aerobar - Black
Couldn't load pickup availability
PayPal - Pay In 4 Interest-Free Instalments. Available at the checkout.
SKU:219361
About This Product...
The Sonic bracket offers a wide fit range, low weight, easy adjustment, and minimal frontal area. When paired with the Ergo armrest, it creates an aerobar that helps riders optimize their position for both speed and comfort.
The 39A is a new addition to our reliable aluminum extension range.
Performance
The Sonic/Ergo is designed to minimize frontal area, reducing aerodynamic drag. The primary goal of an aerobar is to position the rider for speed, and despite its minimalist appearance, the Sonic/Ergo offers a comprehensive fit range to achieve this.
Fit Data
The 39A extensions feature a 39° grip angle. Riders can choose between a high grip for a more shrugged position or a low grip for a more open, head-up position.
The extension length and rotation can be easily adjusted using the top bolt. There are 100 distinct position options simply by moving the armrests. With the addition of the risers, this bar offers up to 1500 possible configurations. As a clip-on bar, it also allows for easy adjustment of the extension width and tilt, making it the most adjustable clip-on bar on the market (and in history).
Armrest Adjustments:
- Offset: -70mm to -17.5mm in 7.5mm increments
- Width: 124mm to 290mm in 18.5mm increments (with extensions at 100mm)
- Stack: 60mm (no riser kit) to 130mm in 5mm increments (with aftermarket riser kit)
Tech Specs
- Bracket: Sonic
- Clamp Diameter: 31.8mm (26.0mm with shims)
- Armrest: Ergo / 10mm Pads
- Armrest Width: 124mm to 290mm in 18.5mm increments (with extensions at 100mm)
- Armrest Offset: -70mm to -17.5mm in 7.5mm increments
- Armrest Stack: Minimum 60mm; compatible with existing risers for up to 130mm stack (with 70mm spacers added)
- Construction: 6061-T6 aluminum, pre-drilled for bar-end shifter cable routing
- Extension Length: 400mm
- Extension Angle: 39°
- Extension Rise: 87mm (bottom to top)
- Extension Offset: 15mm total
- Outer Diameter: 22.2mm
- Inner Diameter: 19.2mm
- Shifter Compatibility: Electronic or Mechanical
- Color: Anodized Matte Black
- Weight: 564g
Tech Guide
Torque Settings (All bolts are M6):
- Bar Clamp: 6Nm (53 inlbf)
- Extension Clamp: 6Nm (53 inlbf)
- Armrest Bolts: 4.7Nm (42 inlbf)
Weight Breakdown:
- Bracket: 234g
- Armrest: 130g
- Extensions: 222g/pair
- Total: 586g
