Tebco
Tebco Explorer E-Bike - Blue
Tebco Explorer E-Bike - Blue
Couldn't load pickup availability
PayPal - Pay In 4 Interest-Free Instalments. Available at the checkout.
SKU:202993
About This Product...
Ideal for work day commuting or weekend pleasure. Diamond frame bicycle built for road or trail.
The bike features 650B wheels and an alloy frame, with a total weight of 24kg, including the battery. It offers a maximum speed of 28km/h and a range of up to 80km. Powered by a 200W motor, it comes with a twist grip throttle and pedal activation. The 36V 13.2Ah LG lithium battery is housed in the latest in-frame design for a sleek look.
Equipped with high-quality 2.125 Kenda K1047 tyres and a 7-speed Shimano trigger shift gear system, the bike ensures smooth rides. The LCD display shows the speed, battery level, and trip details, while Aries Tektro disc brakes on both front and rear provide reliable stopping power. For added comfort, the bike features a VELO GEL saddle, and no license or registration is required for use.
- 650B wheels with alloy frame
- Weight: 24kg (including battery)
- Max Speed: 28 km/h | Max Range: 80 km
- 200W motor with twist grip throttle and pedal activation
- 36V 13.2Ah LG lithium battery with latest in-frame design
- High-quality 2.125 Kenda K1047 tyres
- 7-speed Shimano trigger shift gears
- LCD display: speed, battery indicator, and trip computer
- Aries Tektro disc brakes (front and rear)
- Comfortable VELO GEL saddle for an enhanced ride
- No license or registration required
Mechanical Components
- Frame: 6061 Grade Alloy, Diamond Shaped
- Wheel Size: 650B 36H (Front & Rear)
- Fork: ZOOM 187D AMS 700C Suspension Front Fork
- Handlebar: PROMAX HB-T305
- Stem: PROMAX MQ-565S
- Seatpost: PROMAX SP-252 27.2*400mm
- Seat Clamp: Alloy Quick Release 27.2mm
- Saddle: CF7010
- Shifters: SHIMANO ASLM3157RC-7
- Derailleur: SHIMANO ARDTY500D
- Rims: PARWEIER 700*40c 36H Double Wall Alloy
- Hubs: PT-D112DSE 3/81336135145, MODUS Aluminium
- Spokes: 13g 2.2mm Stainless Steel
- Tyres: KENDA K1052
- Cranks: PROMAX E44PP/32 170mm 44T
- Pedals: WELLGO
- Chain: KMC Z7/RB/116L/PPO
- Brakes (Front & Rear): TEKTRO Aries Mechanical Disc
- Brake Levers: WUXING 108PPD/4 with Power Cut Off
- Mudguards: Customized Mudguards
- Stand: XH-355
- Rear Rack: Alloy 650B/700C, Pannier Compatible
Electrical Components
- Motor: EWO 36V 200W DGW07-32 (20in Rear Wheel / 27.5in Rear Wheel)
- Controller: Lishui 59-5M/36V/15A/6 MOSFETs, Square Wave
- Battery: SAMSUNG 36V 13.2Ah, 40pcs 18650 2600mAh
- Battery Life: Up to 800 recharges from flat
- Battery Weight: 2.4kg
- Display Panel: KEY DISPLAY KD718X
- Pedal Activation: KT-V12L
- Front Light: BUCHEL LED 51252712 (Static Illumination)
- Rear Light: BUCHEL LED 51254523 (Static Illumination)
- Charger: Sans 36V 2Amp Lithium, AU Compliant
- Main Cable: JULET 1T5 Waterproof Quick Release
- Audible Warning: HONKA HOOTA Black
- Max Speed: 25km/h
- Max Range: 80km (1:1 Pedal Assist)
- Bicycle Weight: 24kg (including battery)

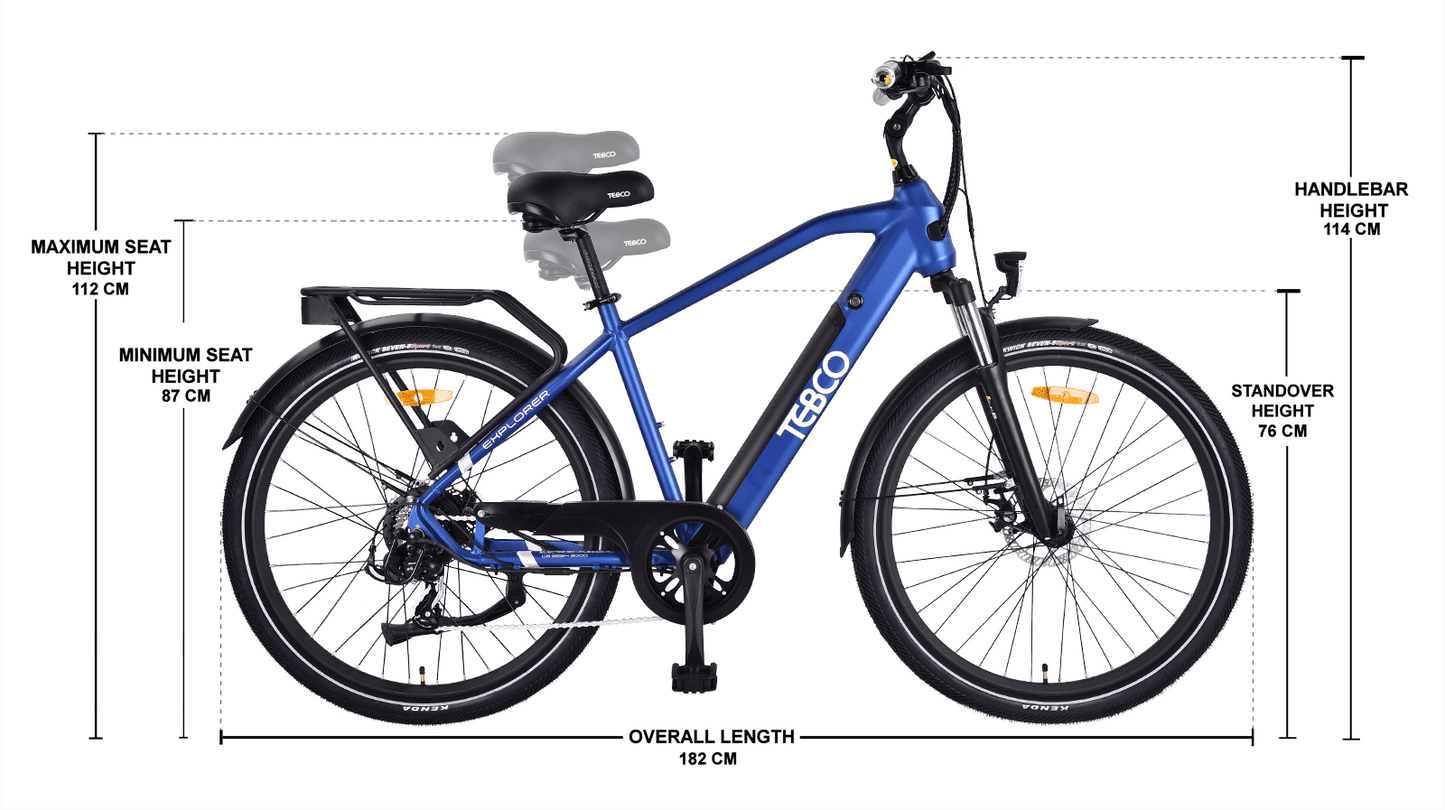

Sizing
- Seat Tube: 450mm
- Step Over: 760mm
- Max Seat Height: 1120mm
- Min Seat Height: 870mm
- Length: 1820mm
- Width: 670mm
