X-LAB

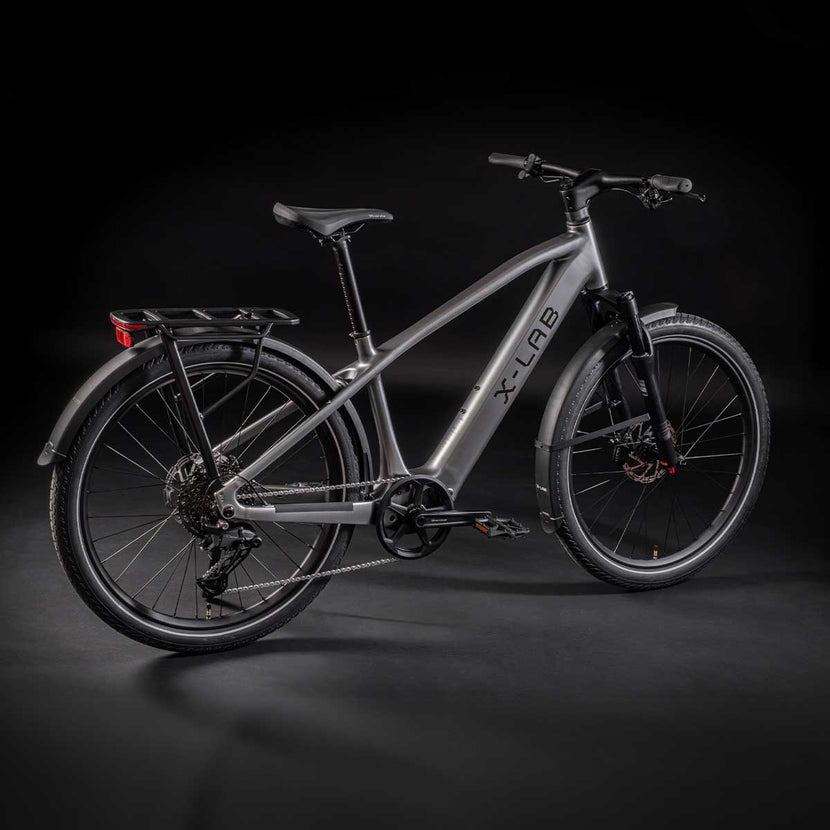

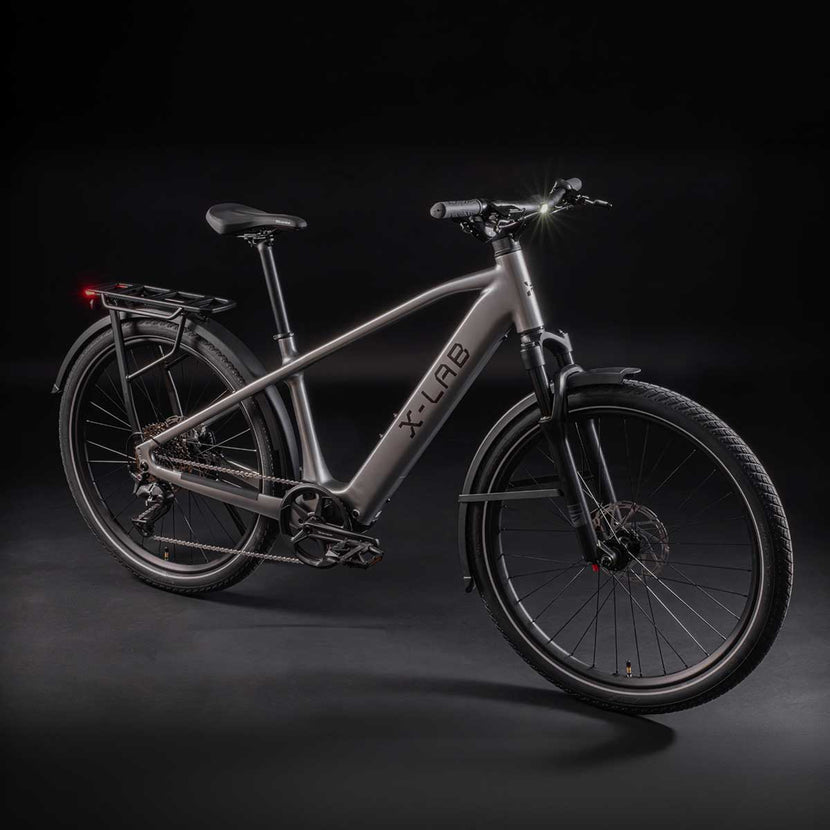

X-LAB ST5+ E-Bike - Mercury Silver

X-LAB ST5+ E-Bike - Mercury Silver

Regular price $3,499.00
Regular price Sale price $3,499.00
Sale Out Of Stock
Size

SKU:228518

About This Product...

Versatile electric bike for commuting, convenience and everyday riding

Features:

  • Mid Drive
  • 619Wh battery
  • Alloy frame
  • Integrated cockpit with colour dashboard
  • Fenders and rack included
  • Cues 9 Speed
  • 2.4" tyres
  • 80mm Suspension fork
  • Handlebar controls
FRAME

XDS X6 Alloy Frame, UDH Compatible

FORK

XDS Suspension Fork, Coil Spring, 80mm Travel,

110x15mm Thru-axle

HANDLEBAR / STEM

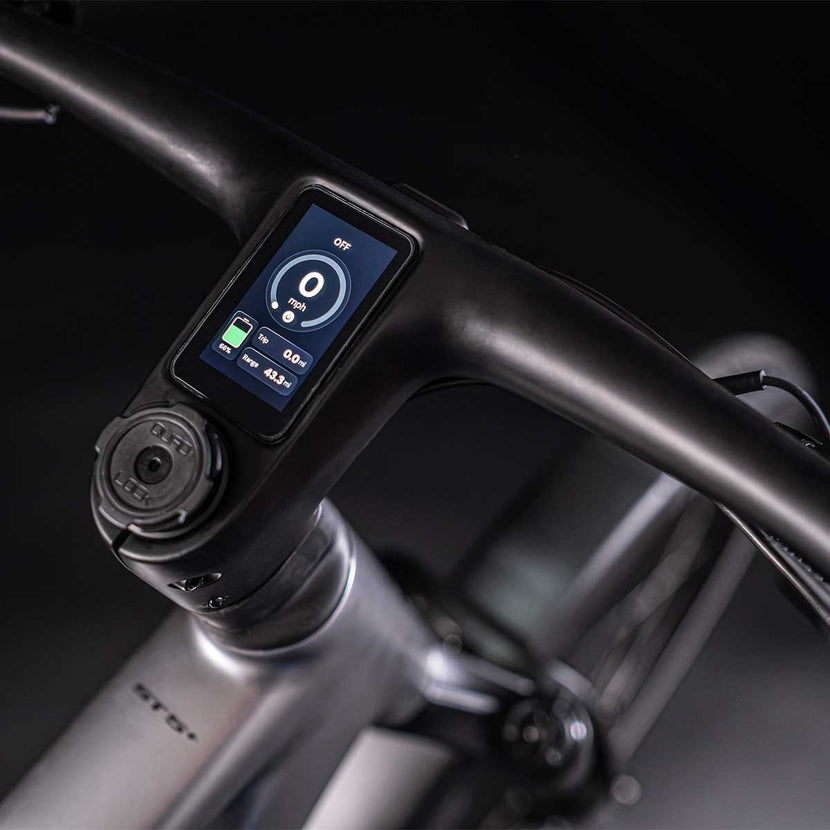

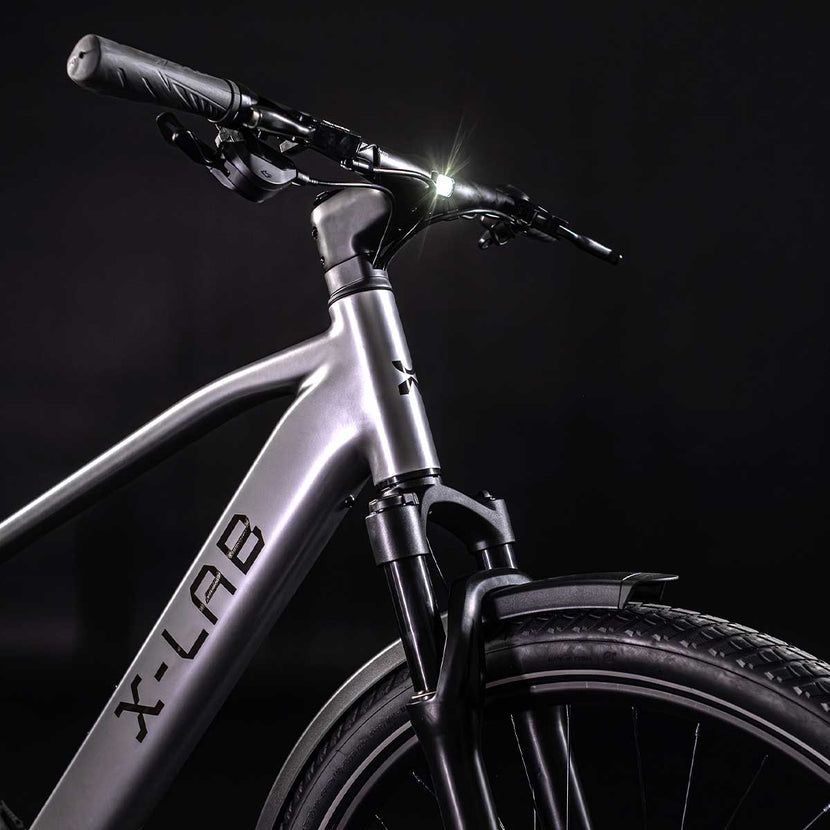

Branta Alloy Integrated, w/ Display & Front light, 680mm

Width, 90mm Length, 6 Degree Rise, 15 Degree Backsweep

SEATPOST

XDS 31.6mm Alloy Seatpost , 350mm Length

REAR DERAILLEUR

Shimano Cues RD-U4000, 9-Speed

SHIFTER

Shimano Cues 9-Speed

BRAKES

Branta EC4D Hydraulic E-Bike Brake, w/ Cutoff Switch,

3 Finger Lever, 4 Piston Caliper

CASSETTE

Shimano CS-LG300 11-46T, 9-Speed

CRANKSET

Branta Alloy Crankset, 46T, Narrow-wide Teeth

MOTOR

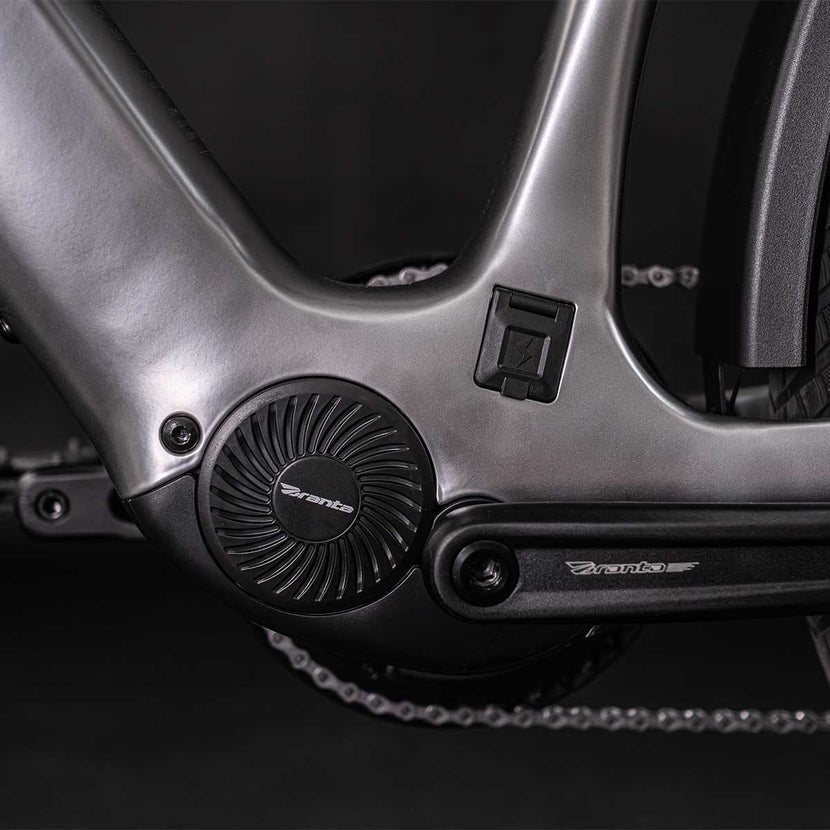

XDS Mid-drive X800 Motor, 250 Watt Continuous Rated

Power, 470 Watt Peak Power, 95Nm Peak Torque, Dual-sided Torque Sensor

BATTERY

XDS Rechargeable Li-ion Battery, 619Wh, LG Battery Cells, 3A Charger (0-100% 5hr)

LIGHTS

Integrated F+R Lights (+ Brake Lights)

SPEED

Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)

RANGE

Ride up to 75 miles on a Single Charge

TESTING AND COMPLIANCE

UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6

LOAD CAPACITY

Max Load 330 lbs (150 kg)

CONNECTIVITY

Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates

ROTORS

Branta PN28, F:180mm R:180mm

CHAIN

KMC E-GLIDE-S

WHEELSET

Branta Alloy E-Bike Wheelset

TIRES

CST CTC-06, 27.5’’x2.4, 30TPI, w/ Reflective Stripe

Max Tire Clearance: 2.4"

SADDLE

Branta C301

PHONE HOLDER

Quad Lock Mount

REAR RACK

MIK-HD Rack

WEIGHT

24.76 kg / 54.58 lbs (Size L)

SIZE OPTIONS

M / L

View full details
